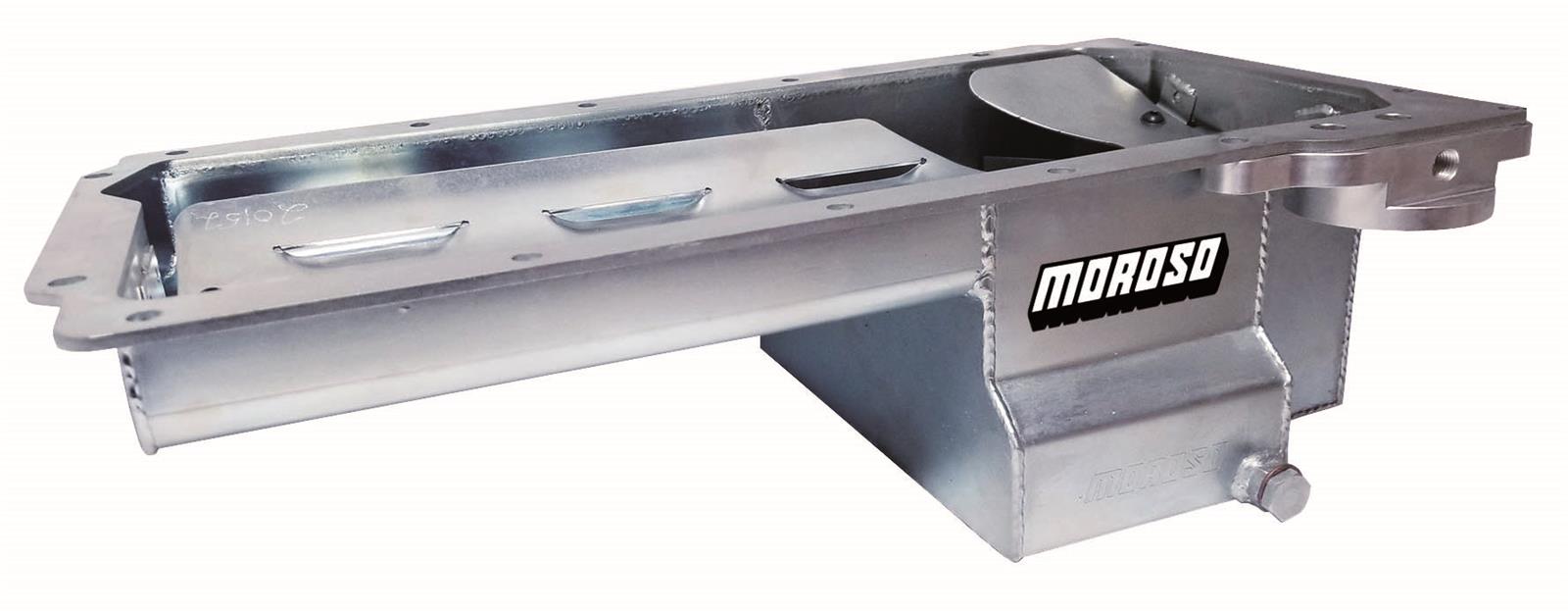

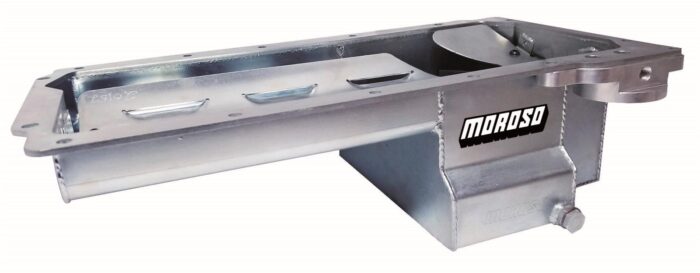

Oil Pan, Steel, Clear Zinc, Dart LS Next Gen 3 Skirted Block, Early/Swap F-Body Race Baffled, Spin-On Oil Filter Adapter that Accepts 22mm thread
Dart LS Next Gen 3 skirted engine blocks. Oil pan includes a spin-on oil filter adapter MOR-22463 and is designed to be used with a 1998-2002 F body dipstick and tube GM numbers 12628771 and 12551581
Moroso 24152 Pickup Tube for 20152 Oil Pan not included
Steel, Wet Sump, 7 Quart Capacity, 6″ Deep
Early F-Body/Swap
Engine Application: Dart LS Next Gen 3 Skirted Block
Fits: ’67-’92, ’10-’15 Camaro, ’68-’78 Nova, ’65-’72 Chevelle, ’53-’96 Corvette, ’78-’88 G-Body, and GM S10/S15 Two Wheel Blazer/Truck, Can also be used in additional applications; check dimensions
- Clears a 4.25″ stroke and has a 7 Quart Capacity

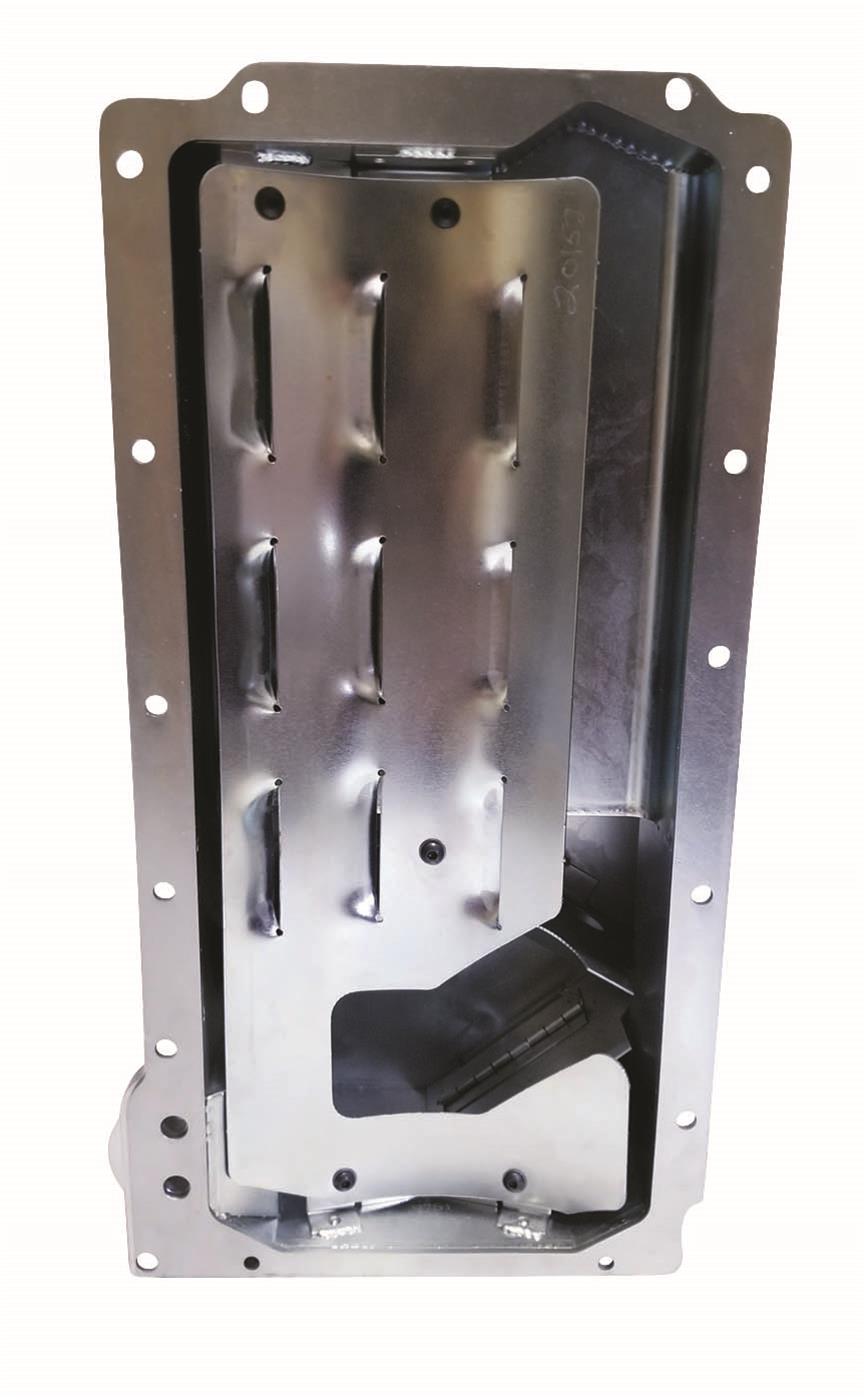

- Three trap door assembly and removable windage tray for improved oil control
- Fabricated steel with clear zinc finish
- Includes billet aluminum 22mm spin-on filter mount with 1/4″ NPT sensor port
- Compatible with LS car application dipstick
